A retaining wall looks simple on paper. On the ground, it is not. Soil moves. Water finds the lowest point. Grades shift by inches, and those inches decide if a wall holds or fails.
That is why builders lean on a topographic survey before they draw a single wall plan. The survey shows what the eye misses. Slopes that look even often are not. Low spots collect water no one notices until it rains for three days straight.
This article breaks down what a topographic survey actually reveals, and how that data shapes smarter, safer retaining wall design.
Why Micro-Elevation Changes Can Influence Retaining Wall Placement
Small elevation shifts, sometimes just a few inches, change how soil pressure builds against a wall. A topographic survey maps these shifts so builders place walls where the load makes sense, not where it looks convenient.
A lot slopes at 8% in one spot and 12% a few feet over. That difference matters more than most people expect.
- A steeper section pushes more lateral force against a wall.
- A flatter section may need less wall height but more length.
- Uneven grade can shift where water pools after a storm.

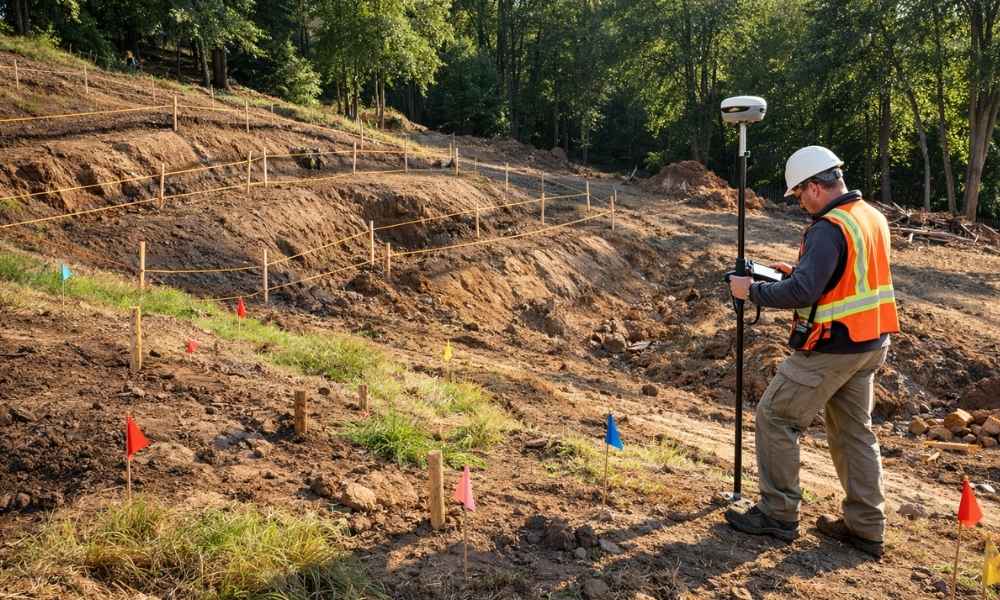

Surveyors capture spot elevations across the site, not just at the corners. This gives builders a real picture of how the ground rises and falls. Without it, a wall might get built a few feet from where it should sit, and that mistake costs money to fix later.
In hilly parts of Alabama, like the foothills around Birmingham or parts of north Alabama, these small changes show up constantly. A survey catches them before construction starts.
Using a Topographic Survey to Locate Surface Water Concentration Zones
Surface water always moves toward the lowest elevation on a property. A topographic survey identifies these low points so retaining walls can redirect water instead of trapping it against the structure.
Water is the main reason retaining walls fail early. Not soil. Not poor concrete. Water.
A survey shows:
- Natural drainage paths across the lot
- Areas where runoff collects after rain
- Points where water crosses from a neighbor’s property
Alabama gets heavy rainfall through spring and summer. A wall built without drainage planning becomes a dam instead of a wall. That pressure builds fast, and it does not take long to crack a poorly drained structure.
Builders use this survey data to plan weep holes, French drains, or grading changes that keep water moving away from the wall base.
Recognizing Terrain Breaklines That Affect Wall Stability
A breakline is a sudden change in slope, like the edge of a hill or a ditch. These lines affect how soil behaves under pressure, and missing one can lead to a wall built on unstable ground.
Think of a breakline as the spot where flat ground suddenly drops. Or where a gentle slope turns steep. These transitions carry hidden risk.
Soil near a breakline often shifts more during heavy rain. It also compacts differently than soil on a steady slope. A topographic survey marks these lines clearly, so the wall design accounts for the change instead of ignoring it.
Builders who skip this step sometimes place a wall right at a breakline. The wall may hold for a year or two, then lean as the soil beneath it settles unevenly.
How Builders Estimate Earthwork Efficiency Before Finalizing Wall Designs
Earthwork efficiency means moving as little soil as possible while still meeting grading needs. A topographic survey gives exact volume and elevation data, so builders avoid over-excavating or importing extra fill.
Every cubic yard of dirt costs money to move. A detailed survey helps calculate:
- How much soil needs to be cut from high points
- How much fill is needed to level low points
- Where the cut-to-fill ratio balances naturally on site
This matters even more when building near property lines or existing structures. A wall that requires massive fill import raises the budget fast. A survey shows builders if a smaller wall, or a stepped wall design, could reduce that cost while still holding the grade safely.
Good planning here saves thousands before a single shovel hits the ground.
Coordinating a Topographic Survey with Geotechnical Investigations
A topographic survey shows the shape of the land. A geotechnical report shows what the soil is made of. Together, they tell builders where a wall can go, and how strong it needs to be.
These two reports work as a pair. The topo survey tells the geotechnical engineer exactly where to place soil borings, usually near the top and bottom of a proposed wall. Without accurate elevation data, borings can end up in the wrong spot, and that skews the whole soil analysis.
Alabama soil varies a lot by region. Some areas have expansive clay that swells with moisture. Others sit on rocky subgrades closer to the surface. A coordinated survey and soil report help builders choose the right wall type, whether that is a gravity wall, a segmental block wall, or a reinforced design.
Skipping this coordination is one of the most common mistakes on sloped lots.
Frequently Asked Questions
Can a topographic survey help determine whether multiple retaining walls are better than one large wall?
Yes. A survey shows the full slope profile across a lot. Sometimes two smaller walls, spaced with a terrace between them, handle grade changes better than one tall wall. This can lower cost and reduce soil pressure at the same time.
How detailed should a topographic survey be for retaining wall design on a sloped residential lot?
Most sloped lots need one-foot contour intervals at minimum. Steeper lots, or lots near a property line, often need spot elevations every few feet for accuracy. The steeper the slope, the more detail the design needs.
Does vegetation affect the accuracy of a topographic survey used for retaining wall planning?
Yes, heavy brush or tree cover can block clear ground readings. Surveyors often clear sight lines or use equipment built to read through light vegetation. Dense areas may need a second pass after initial clearing.
Should a new topographic survey be completed if grading has already started on the property?
Yes. Once grading begins, the original elevation data no longer matches the ground. A new survey confirms current conditions before the wall design moves forward, which prevents costly design mismatches later.
Can architects and structural engineers use the same topographic survey for retaining wall design, or are separate surveys required?
The same survey usually works for both, as long as it includes enough elevation detail and covers the full area near the wall. Sharing one accurate survey keeps everyone on the same page and avoids conflicting site data.
