Developers order a topographic survey before grading starts for one main reason. Grading crews need real numbers, not guesses.
A grading plan sets new elevations. Those new elevations have to connect to the ground that is already there. Without measured elevations, an engineer is working blind.
Existing Ground Data Gives the Grading Team a Starting Point
A grading plan is a set of proposed elevations. Those proposed elevations only make sense next to the real, measured elevations of the site.
An engineer cannot draw grades on a hunch. The design has to tie into something. That something is the existing ground surface, point by point, across the whole property.

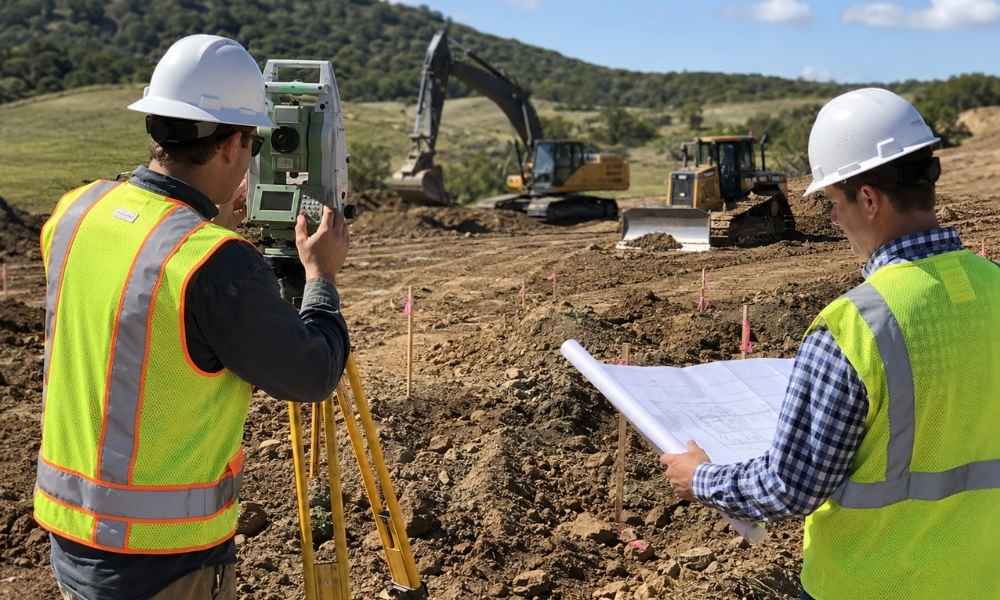

A topographic survey gives the design team that surface. Field crews record elevation points across the site. Those points get turned into a surface model or a set of contour lines. The engineer uses that surface as the base layer for every grading decision that follows.
Handing survey data to the engineer is simple in most cases. Survey firms typically provide points, contours, and a base drawing in a CAD format the engineering software can read directly. The engineer imports it and starts drawing proposed grades on top of real numbers, not a sketch.
A site can look flat and still hold two or three feet of elevation change across a short distance. A slope that looks gentle from the street can be steep enough to affect a building pad or a drive entrance. Guessing at slope from a walk-through, or from a photo, misses these differences.
Aerial imagery shows what a site looks like from above. It does not show elevation. Two properties can look almost the same in an aerial photo and have very different ground shapes underneath. A measured survey replaces that guesswork with numbers.
Birmingham Sites Can Require More Than a Quick Look at the Terrain
Birmingham sits across hills, ridges, and valleys shaped by decades of mining and quarry activity. Two lots on the same street can carry different grades, different slopes toward the road, and different drainage patterns. A site in one part of the metro can behave nothing like a site a few miles away.
Existing buildings, roads, driveways, retaining walls, and utility structures all sit at specific elevations. A grading plan has to work around each of these. A survey records the elevation of these features so the design team knows what it is grading around, not just what it is grading through.
The survey should match the project. A small addition with minor grading does not need the same level of detail as a large subdivision with new roads and stormwater work. Developers should talk with their surveyor and engineer early and set the survey limits and level of detail around the actual scope of the grading, not a standard package.
Birmingham’s Planning, Engineering & Permits department reviews plans and issues permits for many kinds of construction and site work within city limits. Requirements can differ by project type, size, and location. A topographic survey is not automatically required for every grading project in the city. Developers should confirm what their specific project needs directly with the city before assuming a survey is required, or assuming it is not.
The Survey Helps Designers Set Proposed Grades Against Existing Elevations
This is where survey data does its main job. An engineer takes the existing elevations from the survey and lays proposed elevations on top of them.
The proposed elevations describe the finished surface. Pad elevations for a building, elevations along a new drive, high points and low points for drainage. Each of these numbers is set in relation to the ground that is already there.
The design also has to show where new grading stops and existing grade takes over. Every grading plan has edges. At some point, the new surface meets the old one, at a slope, a wall, or a smooth transition. Survey data marks exactly where the existing ground sits at those edges, so the transition can be drawn with real numbers instead of a rough guess.
Grade changes have to work with the shape of the site, not against it. A steep grade change close to a property line, an existing tree, or a neighboring structure can create a problem that is far easier to catch on paper than in the field. Survey elevations let the engineer check these spots before any equipment moves.
Better Survey Data Can Reduce Last-Minute Grading Revisions
Field conditions do not always match old drawings, tax maps, or a rough elevation guess. When the actual ground does not match what the design assumed, the grading plan has to change after work has already started.
Finding an elevation problem once grading equipment is already on site is not convenient. Work can stop while the engineer revises the plan. Crews may need to come back a second time. A change that would have taken a few minutes on paper can take days to sort out in the field.
Current, accurate existing-ground data gives the engineer a better base to design from the first time. Fewer assumptions mean fewer surprises once dirt starts moving.
Developers get the most value from a survey when it happens before the grading plan is finished, not after. Setting the survey scope early lets the surveyor capture everything the engineer will need, including points along property lines, around existing structures, and at any spot where a grade change is likely.
Some elevation points matter more than others. High points, low points, and any spot near a boundary or an existing structure deserve close attention. Finding these points early, before the design is locked in, gives the engineer room to adjust the plan instead of reacting to a problem later.
What Developers Should Confirm Before Ordering a Topographic Survey
A short list to review with the surveyor before ordering the work:
- Where the proposed building and other site improvements will sit
- Which areas of the site will actually be graded
- Existing structures, walls, drives, and utilities that need to be located
- How much elevation detail the project needs, including contour interval and point spacing
- The exact limits of the property or project area the survey should cover
- The deliverable format the engineer needs, such as a specific CAD file type
- Whether the survey will directly support the engineer’s grading design, or if extra detail is needed
- Any Birmingham permitting or plan submission requirements tied to the project
Birmingham currently uses an Online Permit Center for permit applications, along with a Digital Plan Room for uploading and reviewing plans on qualifying projects, including some civil construction and earthwork submissions. Requirements can vary by project type. Developers should check current submission requirements directly with the city’s Planning, Engineering & Permits department before finalizing survey scope, rather than relying on a general rule.
